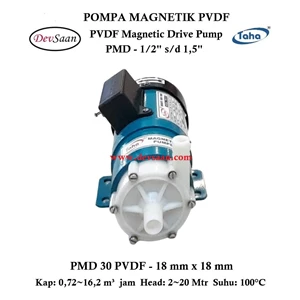

PVDF Magnetic Drive Pump PMD-30 Pompa Magnetik - 18 mm x 18 mm

Spesifikasi PVDF Magnetic Drive Pump PMD-30 Pompa Magnetik - 18 mm x 18 mm

Rincian Produk

Model: PMD-30 PVDF

Merek: Taha, India

Kondisi: Baru

Berat bersih: 5 Kg.

SKU: CPTPPMD30PVX

Jual PVDF Magnetic Drive Pump PMD-30 Pompa Magnetik

Aplikasi pompa sentrifugal PMD : Kimia & asam pekat, limbah, pewarna, pigment, filter press, pelapisan, air RO, air DM, air laut dan lain-lain.

PVDF : Polyvinylidene Fluoride

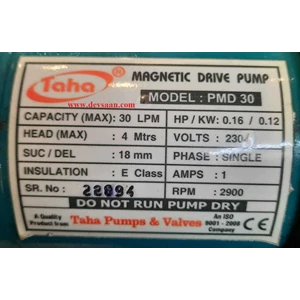

Spesifikasi pompa magnetik PVDF PMD-30 :

- Ukuran 18 mm x 18 mm

- Inlet & Outlet Nepel selang

- Kapasitas / Debit 30 Lpm (1,8 m3/jam) (Maks.)

- Head (Vertikal) Hingga 4 Mtr

- Angkat hisap / Suction lift Hingga 0,5 Mtr (Dengan Foot valve)

- Berat jenis (Massa jenis) fluida Hingga 1,1 (1100 Kg/m3)

- Suhu fluida Hingga 100° Celsius

- pH fluida 1~8

- Kecepatan pompa 2900 Rpm

- Spesifikasi elektro motor 0,16 Hp (0,12 kW) 2900 Rpm 1 Fase 230V 50 Hz

- Tipe impeller Semi-open

NOTE : Berat jenis fluida di atas 1,0 ? Hubungi kami untuk konsultasi produk.

Bahan konstruksi pompa magnetik PVDF PMD-30 :

- Suction casing & cover Polyvinylidene Fluoride

- Impeller Polyvinylidene Fluoride

- Shaft High alumina ceramic

- Bush Glass filled teflon

- Thrust washer High Alumina Ceramic

- O-Ring Viton

- Magnets Permanent high power rare earth magnets

- Mounting bracket & motor body Aluminium / Cast iron

PVDF Magnetic Drive Pump PMD-30 dapat digunakan untuk : Sulfuric acid, Hydrochloric acid, Phosphoric acid, Nitric acid, Acetic acid, Copper, zinc, smelter, steel & re-rolling plants, Caustic soda plants, Rayon & staple fiber plant (Bleach liquor), Paper & pulp industries, Pharmaceuticals industries, Distilleries, Fertilizer plants, Thermal & chemical plants, Effluent treatment, Filter press for dyes & chemicals, Water treatment plants, Transferring of Concentrated HCL, Electroplating chemicals, Scrubbing of corrosive gases, Boiler descaling, Pickling in steel rolling mills, Dyes & intermediate industries, Cement & refractory plants.

- Produk dan Spare part ready stock di perusahaan kami.

- Garansi Satu (1) tahun untuk kualitas dan performa produk.

- Garansi termasuk Free repair dan servis di workshop kami.

- Garansi tidak termasuk penggantian spare part.

- Harga sudah termasuk PPN.

- Harga sudah termasuk packing.

- Hubungi kami di (021) 62308030 / 62308035  WA 085719196960 / 081388920119
