Rincian Produk
Model: PMD-170 PP 1 Fase
Merek: Taha, India
Kondisi: Baru
Berat bersih: 13 Kg.
SKU: CPTPPMD17PP1
Jual Polypropylene Magnetic Drive Pump PMD-170 Pompa Magnetik 1 Fase
Aplikasi pompa sentrifugal PMD: Kimia & asam pekat, limbah, pewarna, pigment, filter press, pelapisan, air RO, air DM, air laut dan lain-lain.

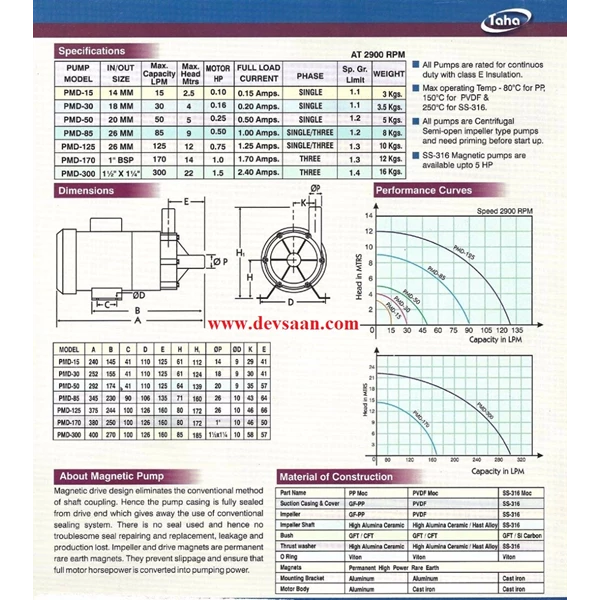

Spesifikasi pompa magnetik Polypropylene PMD-170:
- Ukuran 1" x 1"
- Inlet & Outlet Drat BSPT
- Kapasitas/Debit 170 Lpm (10,2 m3/jam) (Maks.)
- Head (Vertikal) Hingga 14 Mtr
- Angkat hisap/Suction lift Hingga 1 Mtr (Dengan Foot valve)
- Berat jenis (Massa jenis) fluida Hingga 1,3 (1300 Kg/m3)
- Suhu fluida Hingga 70° Celsius
- pH fluida 4~8
- Kecepatan pompa 2900 Rpm
- Spesifikasi elektro motor 1 Hp (0,75 kW) 2900 Rpm 1 Fase 230V 50 Hz
- Tipe impeller Semi-open
NOTE: Berat jenis fluida di atas 1,0 ? Hubungi kami untuk konsultasi produk.
Bahan konstruksi pompa magnetik Polypropylene PMD-170:
- Suction casing & cover Polypropylene
- Impeller Polypropylene
- Shaft High alumina ceramic
- Bush Glass filled teflon
- Thrust washer High Alumina Ceramic
- O-Ring Viton
- Magnets Permanent high power rare earth magnets
- Mounting bracket & motor body Aluminium / Cast iron
Polypropylene Magnetic Drive Pump PMD-170 dapat digunakan untuk : Sulfuric acid, Hydrochloric acid, Phosphoric acid, Nitric acid, Acetic acid, Copper, zinc, smelter, steel & re-rolling plants, Caustic soda plants, Rayon & staple fiber plant (Bleach liquor), Paper & pulp industries, Pharmaceuticals industries, Distilleries, Fertilizer plants, Thermal & chemical plants, Effluent treatment, Filter press for dyes & chemicals, Water treatment plants, Transferring of Concentrated HCL, Electroplating chemicals, Scrubbing of corrosive gases, Boiler descaling, Pickling in steel rolling mills, Dyes & intermediate industries, Cement & refractory plants.
- Produk dan Spare part ready stock di perusahaan kami.
- Garansi Satu (1) tahun untuk kualitas dan performa produk.
- Garansi termasuk Free repair dan servis di workshop kami.
- Garansi tidak termasuk penggantian spare part.
- Harga sudah termasuk PPN.
- Harga sudah termasuk packing.
- Hubungi kami di (021) 62308030 / 62308035 WA 085719196960 / 081388920119
