Rincian Produk
Model: S 150
Merek: Flex-C
Kondisi: Baru
Berat bersih: 4,15 Kg.
SKU:JCS150XXXXXX

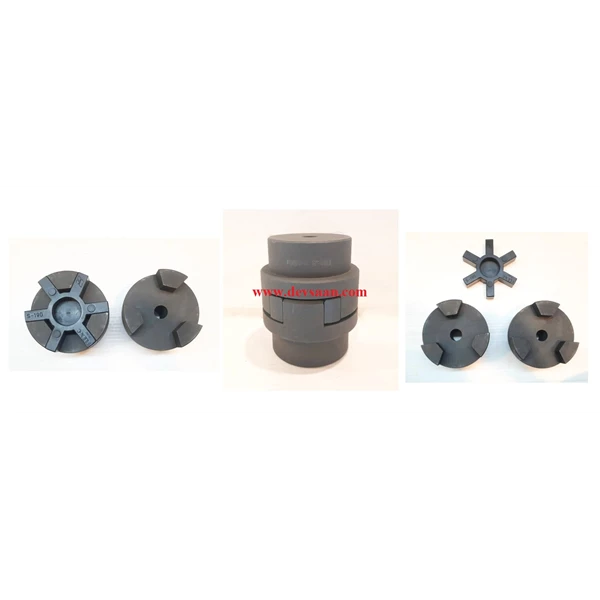

Jual Jaw Coupling S 150 Flex-C Max Bore 48mm

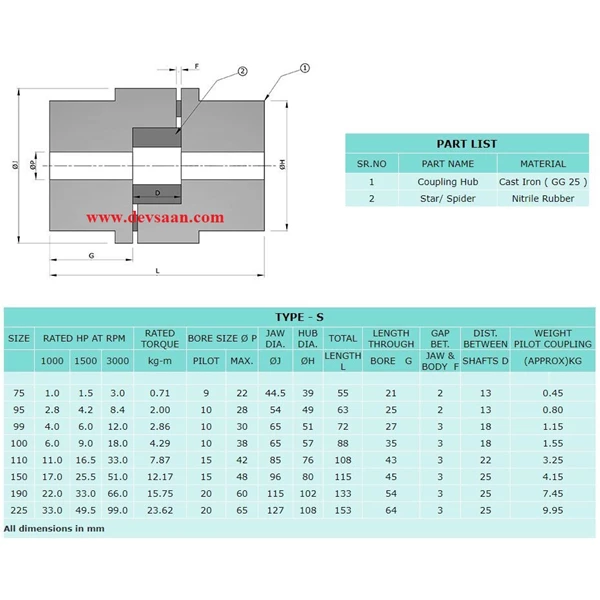

(Dimensi coupling dapat dilihat di brosur terlampir)
- Standard Star / Spider Coupling
- Low weight to high torque ratio
- Easy for alignment of equipment
- Torque range up to 24 kg-m (235.36 n-m)
Spesifikasi Jaw Coupling S 150 :
- Model 150
- Coupling type Jaw Flex
- Colour Black
- Rated Hp (kW) :
@ Speed 1000 Rpm17 (12,75 kW)
@ Speed 1500 Rpm25,5 (19,125 kW)
@ Speed 3000 Rpm51 (38,25 kW)
- Rated Torque 12,17 kg-m (119,35 n-m)
- Pilot bore size 15 mm
- Max bore size 48 mm
- Jaw diameter 96 mm
- Hub diameter 80 mm
- Total length 115 mm
- Length through bore 45 mm
- Gap between Jaw & Body 3 mm
- Distance between shafts 25 mm
Bahan konstruksi Jaw Coupling S 150 :
- Coupling hub Graded Cast Iron (GG 25) Phospated
- Star / Spider Rubber Element Nitrile Rubber (NBR)
Misalignment tolerance :
- Parallel misalignment up to 0.4 mm
- Angular misalignment up to 1.5 degree
Anda dapat beli produk tersebut langsung dari importir dan distributor tunggal di Indonesia :
PT. Devsaan Industech, LTC Glodok, Jakarta Barat, DKI Jakarta 11180
- Coupling & Rubber Element ready stock di perusahaan kami.
- Harga sudah termasuk PPN.
- Harga Franko di LTC Glodok, Jakarta & belum termasuk ongkos kirim.
- Harga sudah termasuk packing kardus.
- Hubungi kami di (021) 62308030 / 62308035 WA 085719196960 / 081388920119
